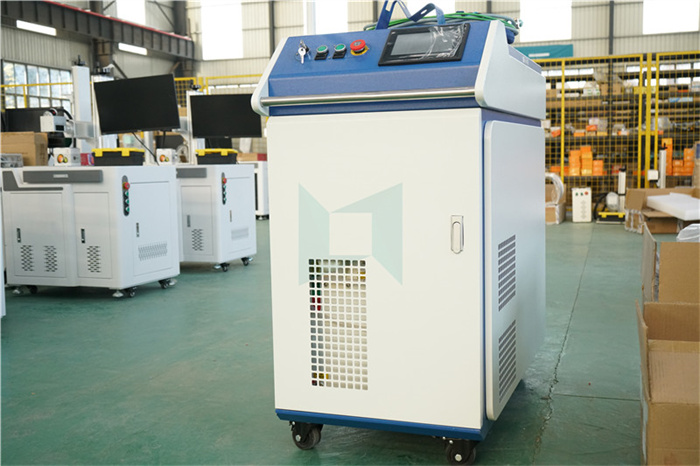

1000W 1500W 2000W Manual Handheld Laser Welding Fiber Laser Welder Machine For Stainless Steel Metal Sheet

Home / Products / Fiber Laser Welding Machine / 1000W 1500W 2000W Manual Handheld Laser Welding Fiber Laser Welder Machine For Stainless Steel Metal Sheet

Introduction

With the booming of global advertising industry, metal letters has been more and more popular because of its colorfulness, attractiveness, heating-proof, frozen-proof, no deformation, no fadedness (8-10 years color preservation), corrosion proof, rain-proof, and spontaneous combustion proof and some other good features. AD metal letters are made of stainless steel, aluminum, copper or other metal sheet being cut, polished, hemmed, and welded. The core feature of AD metal letters is being rustproof, with long life span and dimensional looks. It’s widely used in LED illuminated billboard, exterior/interior signs, branding, door plate and etc.

Technical Index:
Model No.
CTZG-200W
CTZG-400W
Laser Power
200W
400W
Laser Source
Nd3+: YAG bar Φ7*145mm
Nd3+: YAG bar Φ8*155mm
Laser Wavelength
1064nm
Laser Tube Qty’
1 pc
2 pcs
Single-pulse Energy
80J
120J
Pulse Duration
0.2~20ms
Frequency Range
0.1~50Hz
0.1~100Hz
Workable Current
50~200A
50~300A
Welding Spot Diameter
0.3~1.0mm
0.3~1.2mm
Table Size
W1000*L750mm
Table Size
W1000*L750mm
Laser Arm Stretch
total length 1370mm,strech distance 750mm
Fiber Cable Length
5 meters (work distance of pen mode)
Settings Memory
100 groups
Control Panel
7” color LED touch screen
Language Option
English/Chinese
Power Supply
220V/50Hz (220V/60Hz optional)
380V/50Hz (380V/60Hz optional)
Power Consumption
Laser: 8KW , Chiller:1KW
Laser:14KW , Chiller:3.3KW
Dimensions(mm)
Laser &table: 1730*750*1250
Chiller: 480*580*800 (1HP)
Laser & table: 1730*750*1250
Chiller: 1100*650*1350 (3HP)
Net Weight
305KG
400KG
Package Volume
2.5CBM
3CBM
Package Weight
345KG
450KG
Applicable Materials
Stainless Steel, Titanium, Iron, Galvanized sheet
Stainless Steel, 1000 Serial Aluminum, Copper Alloy, Titanium, Iron, Galvanized sheet
Material Thickness
<=1.5mm
<=2.5mm

Advantages

Sample Show

Applicable Industry:
1. Widely applied in the fields of aeronautical and space, mechanism, electron, communication, dynamic,Chemical, automobile manufacture and other industries.
2. The welding of automobile spare parts, such as hydraulic pressure jib, gasoline cleaner, left gas sensor,Electromagnetic valve, and drive starting stator.
3. The close welding of lithium ion batteries, such as mobile phone batteries and power batteries.
4. In metallurgy industry, such as silicon steel plate welding.
5. The welding of engine and engine lamina in application military industry.
6. The precise spot welding of the electronic components and close welding of relay.
7. In electrical equipment industry, such as silicon steel sheet welding, the rotor of the air-conditioner Drive welding, and creepage protection welding.

Applicable Materials:
Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.

Package
