Handheld Fiber Laser Welding Machine 1000w / Fiber Laser Welder Stainless Steel Laser Soldering

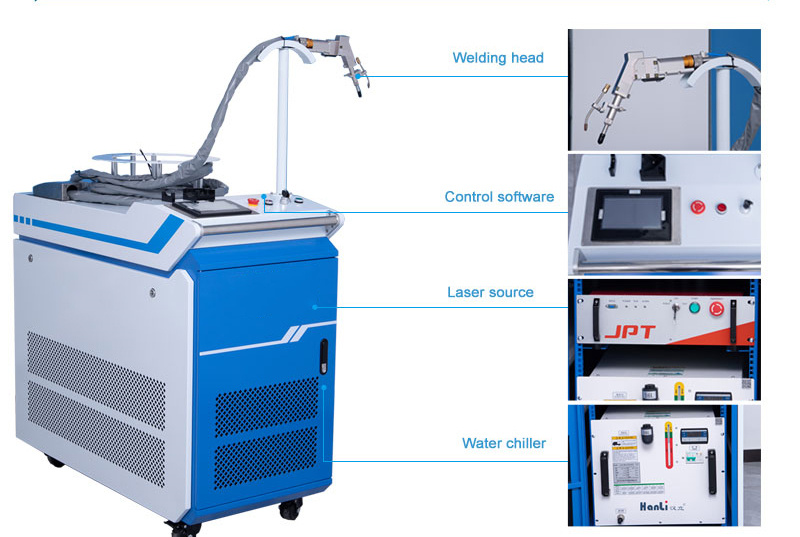

Machine Structure

Machine introduction

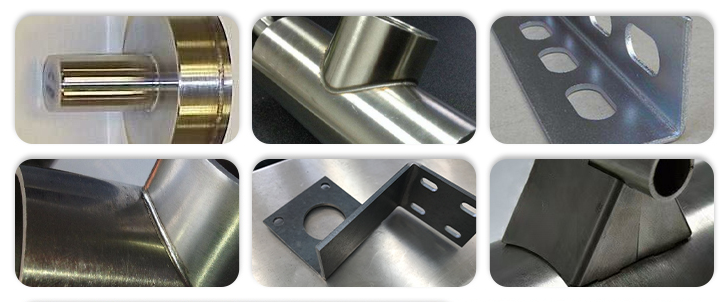

The fiber continuous welding machine is a high-end, new type of welding method. The laser beam is coupled to the fiber, and after being transmitted over a long distance, it is processed into parallel light. Focusing on the workpiece to carry out continuous welding, the welding effect is stronger and the weld seam is more fine and beautiful due to the continuity of the light output. According to the different needs of different industries, the equipment can meet the needs of users in different industries, such as advertisment letters, metal plate, cabinet, shelf, door, window, elevator, Washing Basin, etc. many metal products industries.

Equipment features

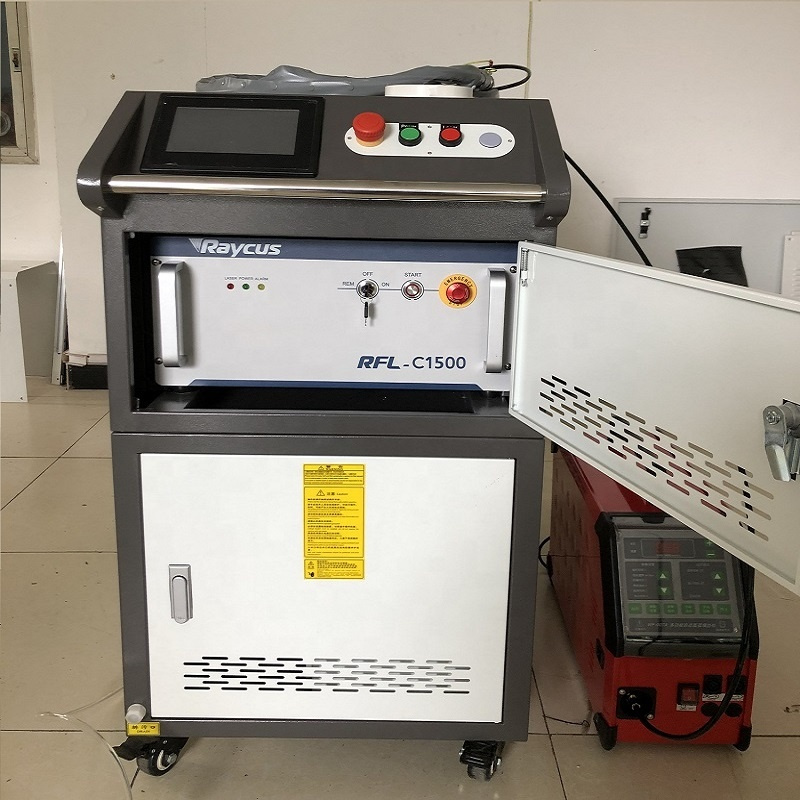

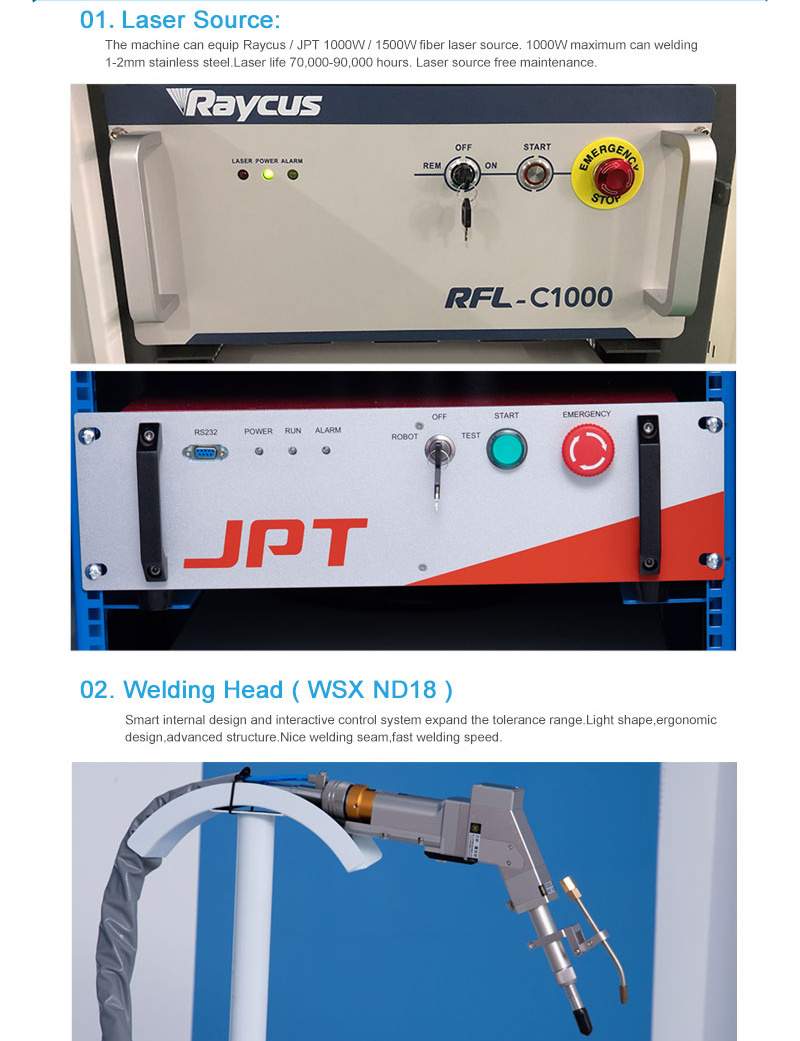

1).JPT / Raycus fiber laser source, the laser life 50,000-70,000 hours,free maintenance.

2).Hand-held holding welding head is easily operated ,pciking and moving.

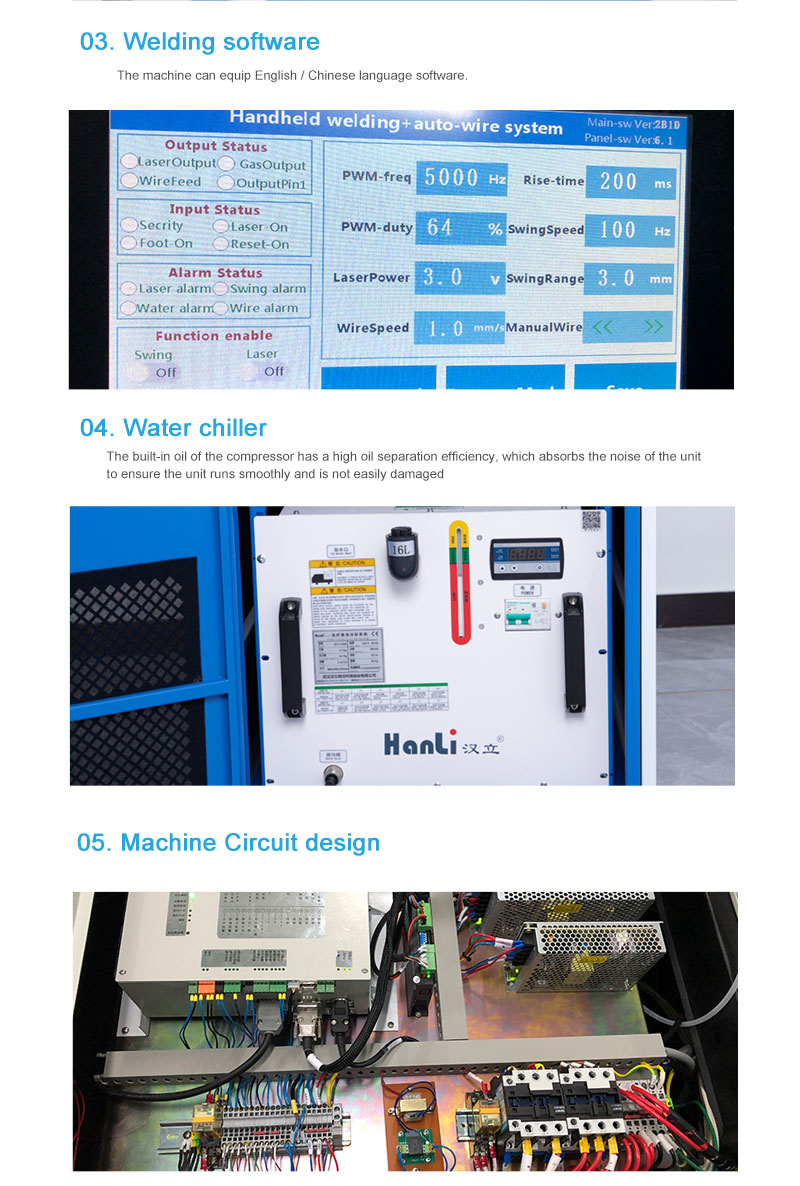

3).Using special welding software .it has function of continuous laser beam ,and the adjustable output waveform,which can assure the precious and high-speed welding

4). 1000W can welding 0.5-2mm stainless steel.

Technical parameters

Item Name	Technical Parameter
Model	SL-WF 1000W / 1500W
Laser Power	1000W / 1500W
Laser wavelength	1080±5nm
Laser type	Raycus fiber laser source
Beam diameter	M2<1.2
Maxmodulation frequency	5 KHz
Output power stability	3%
Fiber cable length	10-20m ( or customized )
Welding thickness	0.5-3mm stainless steel
Rated power consumption	4KW
Operating voltage	240V/50-60 Hz/15A
Cooling	Water Cooling
