1000w 2000w 3kw 3015 fiber optic equipment cnc lazer cutter carbon metal fiber laser cutting machine for stainless steel sheet

Product Description

Machine Model		GF3015
Cutting Area(length x width)		3000mm×1500mm
Laser Model		Fiber laser IPG-500W/1000W
Laser Wavelength		1,070-1,080nm
CS Cutting Thickness		Max. 5mm/10mm
SS Cutting Thickness		Max. 3mm/5mm
Interface		USB,RJ45
X-Axis	Moving Speed	50m/min
	Stroke	3000mm
	Position Accuracy	±0.05mm/m
	Repeatability Accuracy	0.05mm
Y-Axis	Moving Speed	50m/min
	Stroke	1500mm
	Position Accuracy	±0.05mm/m
	Repeatability Accuracy	0.05mm
Z-Axis	Stroke	50mm
Power Supply Requirement		400V/50Hz/30A(36A)
Continuous Working Time		24Hours
Machine Weight		Approximate 3000kg
Dimension(length×width×height)		4500mm×2300mm×1500mm

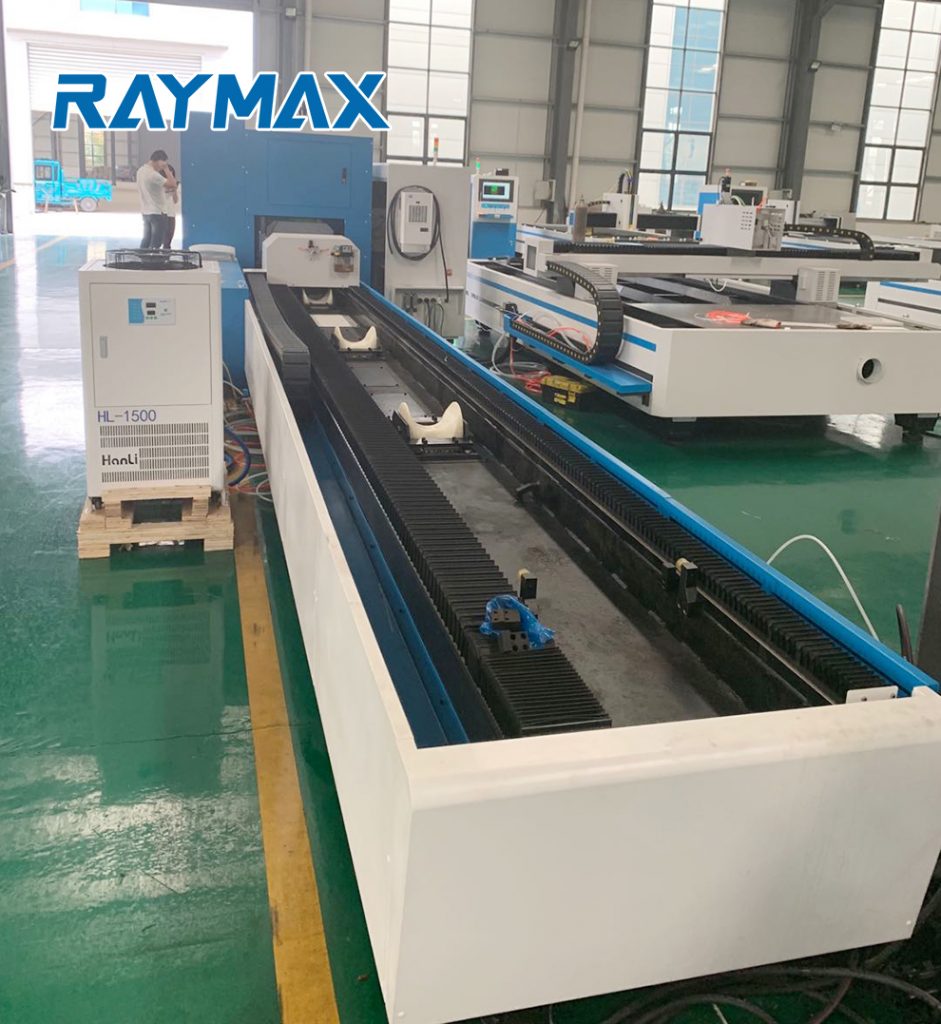

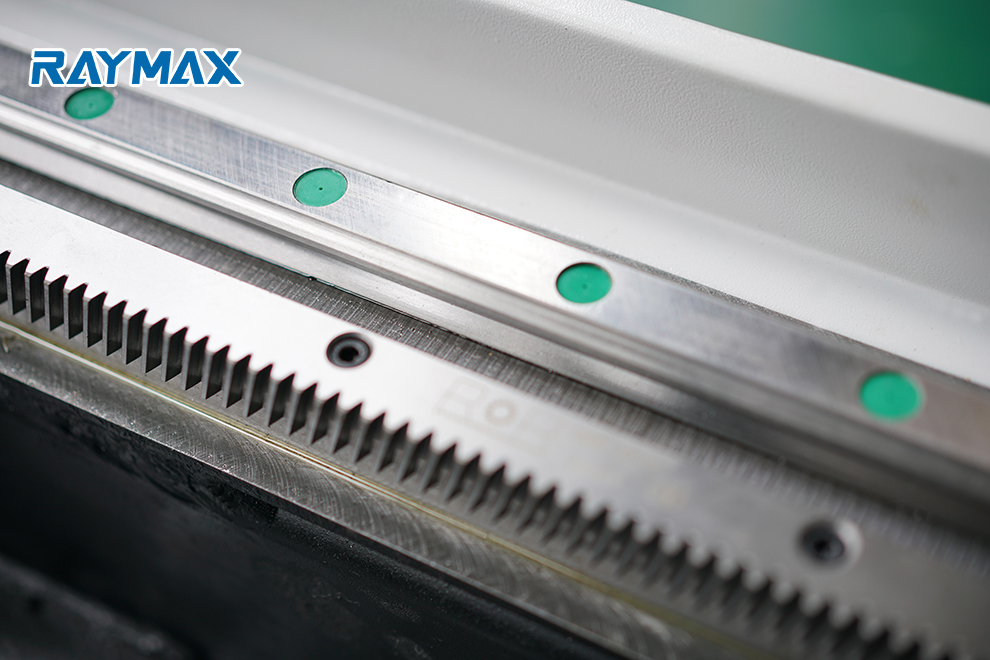

3015 CNC laser cutting machine adopts gantry-motion structure, linear guide, screw drive, AC servo motor and drives, and vacuum system (both sides), etc. The one-time processing area is 3m*1.5m.Not only that the equipment's design is advanced and reliable, but also that all key components are from both national and international well-known brands. In particular, we use Germany BECKHOFF' company's professional laser CNC system for the electrical control system.

This special laser CNC system has advantages of high integration, better control precision and more stable operation, therefore, in addition to the meet the requirement of cutting carbon steel plate, it can also meet the requirement of cutting SS plate, aluminum alloy, copper alloy and other materials.

Features:
1. Users-friendly operating interface
2. USB port and broadband interfaces
3. AC servo motor and drive;
4. Fast-response surface following;
5. Easy operated cutting retract function;
6. Straight line/circular arc interpolation fitting and kerf compensation functions;
7. Programming software Farley CNCKAD with automatic nesting functions;
8. Water chillers ensure machine's precise and stable running
9. CAD/CAM software package with powerful nesting function and edge-shared cutting function;
10. Ventilation dust removal device protect working environment from cutting emissions and metallic vapor;
11. Slag discharging device to facilitate slag discharging.
