Hot sale J23 series C-frame mini power press machine 10 ton mechanical metal plate hole punching machine

Home / Products / Hot sale J23 series C-frame mini power press machine 10 ton mechanical metal plate hole punching machine

Features



Closed gear-driven, dipped in lube, which drives stably with low noise. Slide with counter balancer, which will eliminate the clearance and improve the stability and precision. Intermittent auto lubrication makes every point get fine and safe lubrication.Thus, long service life is saved. PLC electric control system is safe and reliable Air cushion, photo-electric guard, auto feeder, speed die changing and variable-speed device are optional.

Specification

Item
J23-10T
J23-16T
J23-25T
J23-40T
J23-63T
J23-80T
J23-100T
J23-125T
Nominal Pressure
100KN
160KN
250KN
400KN
630KN
800KN
1000KN
1250KN
Slide stroke (Times/min)
145
140
70
55
50
45
45
38
Slide strokes
50mm
60mm
70mm
100mm
110mm
115mm
130mm
150mm
Max closing height
150mm
170mm
200mm
300mm
330mm
380mm
380mm
500mm
Die height adjustment
40mm
40mm
40mm
70mm
80mm
80mm
100mm
100mm
Distance between slider center and machine
130mm
160mm
180mm
215mm
230mm
250mm
280mm
390mm
Workbench diameter(mm)
240x360
300x480
320x525
400x650
440x700
480x750
540x840
720x1100
Pole distance
180mm
220mm
240mm
300mm
300mm
300mm
380mm
550mm
Shank hole diameter
30mm
35mm
40mm
50mm
60mm
60mm
60mm
60mm
Shank hole depth
50mm
60mm
60mm
70mm
70mm
80mm
80mm
75mm
Pad thickness
50mm
50mm
50mm
75mm
80mm
95mm
100mm
130mm
Body tilting angle
30°
20°
20°
20°
20°
20°
20°
13°
Motor power
1.5Kw
1.5KW
2.2KW
3KW
4KW
7.5KW
7.5KW
11Kw
Weight
450Kg
750KG
1500KG
2500KG
4000KG
5000KG
6000KG
7000Kg

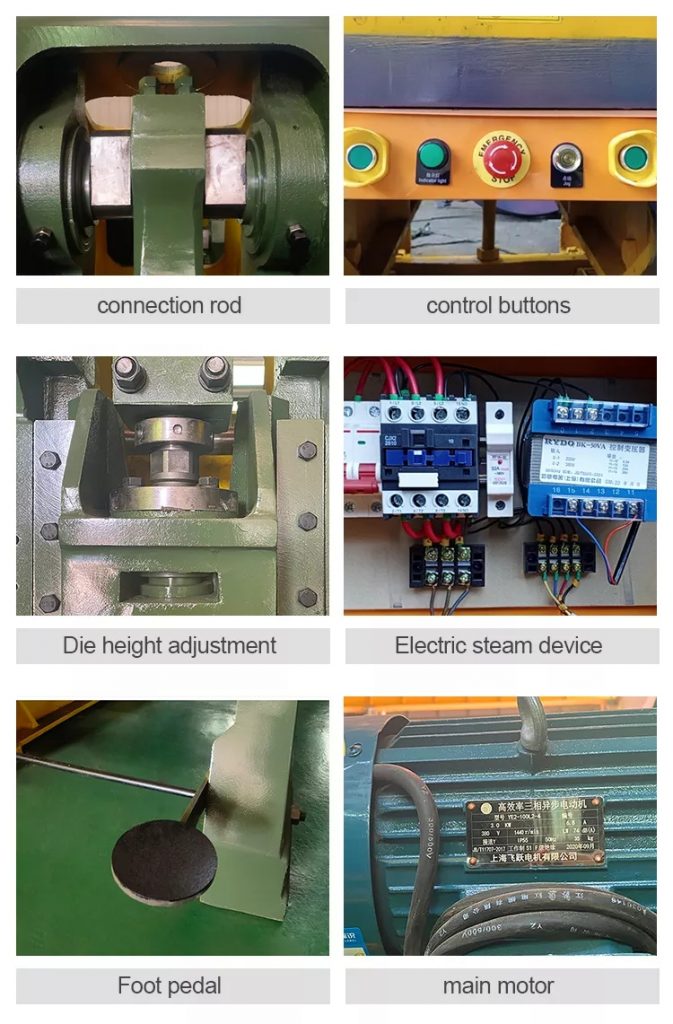

Confuguration

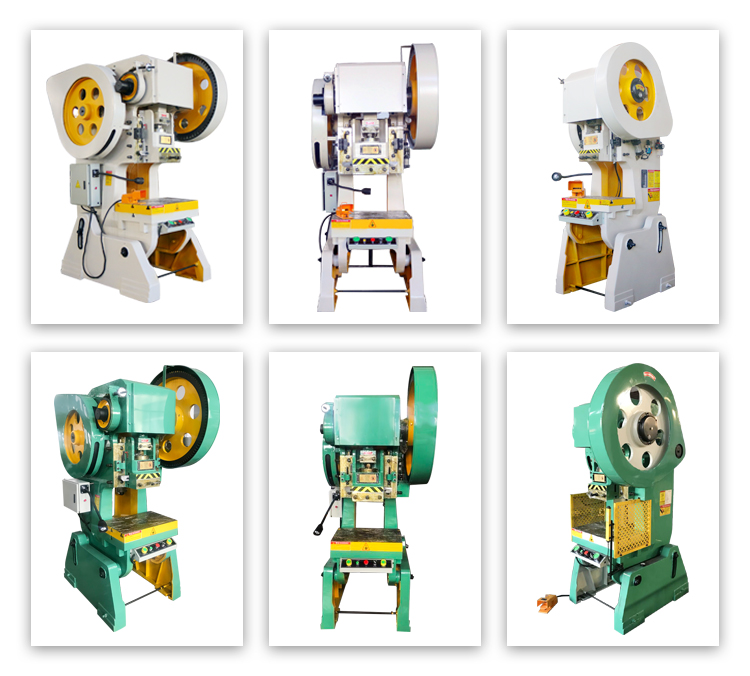

Images
