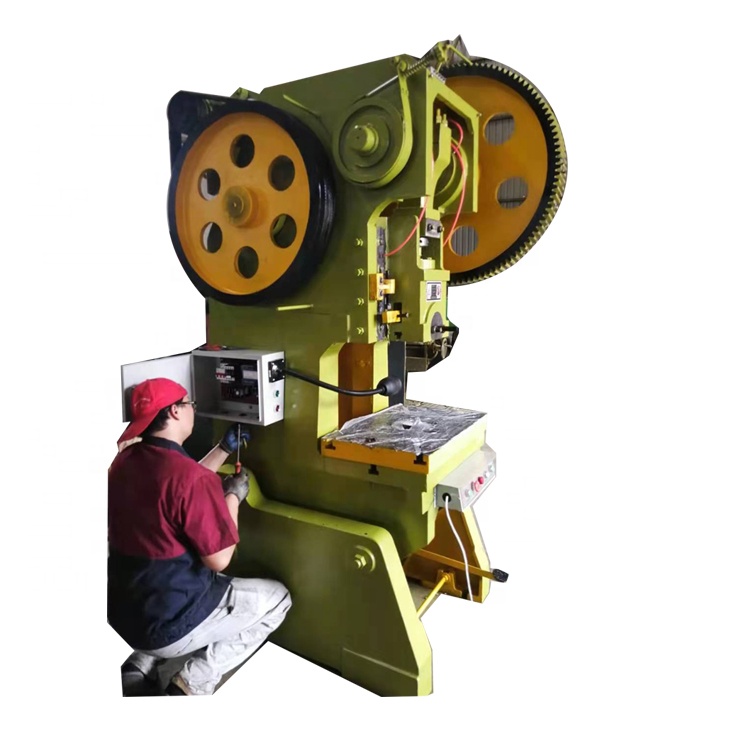

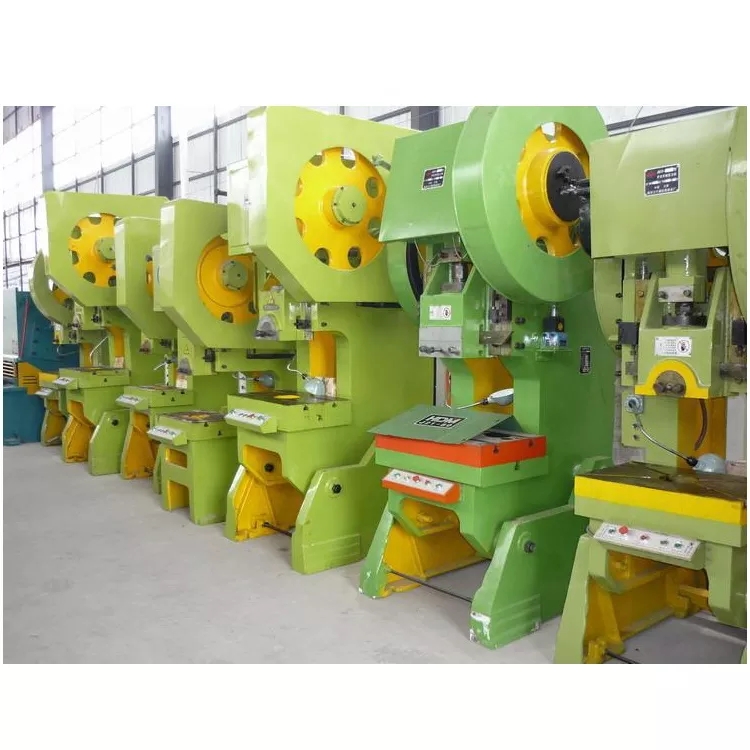

J23 J21 63 ton c crank power press mechanical pressing punching machine

J23/J21S Power Press Punching Machine Features

1.It adopts horizontally placed crankshaft.

2. The crankshaft position is equipped with travel adjustment device.

3. It also equipped with rigid turn-key type clutch.

4. The machine is die height manually adjusted and degree scale display

1. The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.
2. Die height adjustment of slider with manual mode, the scale display. Extended by four triangular rail, easy adjustment
3. Proximity switch with 8 groups consisting of Schneider cam controller, reliable synchronization detection and monitoring.
4. Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.
5. Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards

Ram adjustment and structiure

1. Adjustable stroke machine, slide stroke to achieve a certain level within the range of adjustable, body steel plate welded structure, the whole body is tempered, use the secondary transmission, the transmission part of the crankshaft horizontal Placement, flywheel and gear are the external open style, easy maintenance.
2. Slider is a cast box structure and rigid. Collapse of the slider-style installation of pressure overload protection device, simple structure,if the slider overload, the fuse collapse is damaged, then protect the machine tool and die from damage.

Functions

J23 open tilting power press machine are widely used in electronics, communications, computers, household appliances, furniture, vehicles, (cars, motorcycles, bicycles) metal parts stamping and forming.

Specification

J23/J21S Power Press Punching Machine data

Type	Normal pressure	Slipper stroke	Columns Distance	Power
J23-10T	100KN	50mm	160mm	1.1kw
J23-40T	400KN	100mm	260mm	4.0kw
J23-63T	630KN	100mm	280mm	5.5kw
J23-80T	800KN	120mm	300mm	7.5kw
J21-100T	1000KN	130mm	340mm	7.5kw
J21-125T	1250KN	140mm	370mm	11kw
J21S-10T	100KN	50mm	160mm	1.1kw
J21S-63T	630KN	100mm	280mm	5.5kw
J21S-125T	1250KN	140	370mm	11kw
