1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life. Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application.
2. Wide body frame eliminating vibration for improved IDE life and machine, which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple andthe appliance is also beautiful.
3. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service
Features At A Glance
Slide stroke (Times/min)
Max closing height
Die height adjustment
Distance between slider center and machine
Shank hole diameter
Shank hole depth
Body tilting angle

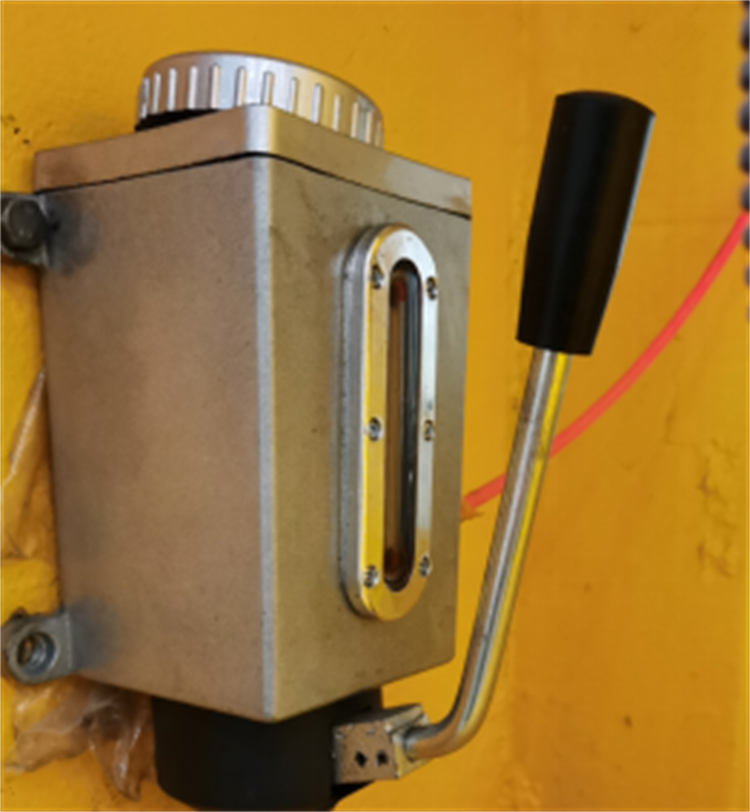

Manual centralized lubrication. Simple and easy operation.

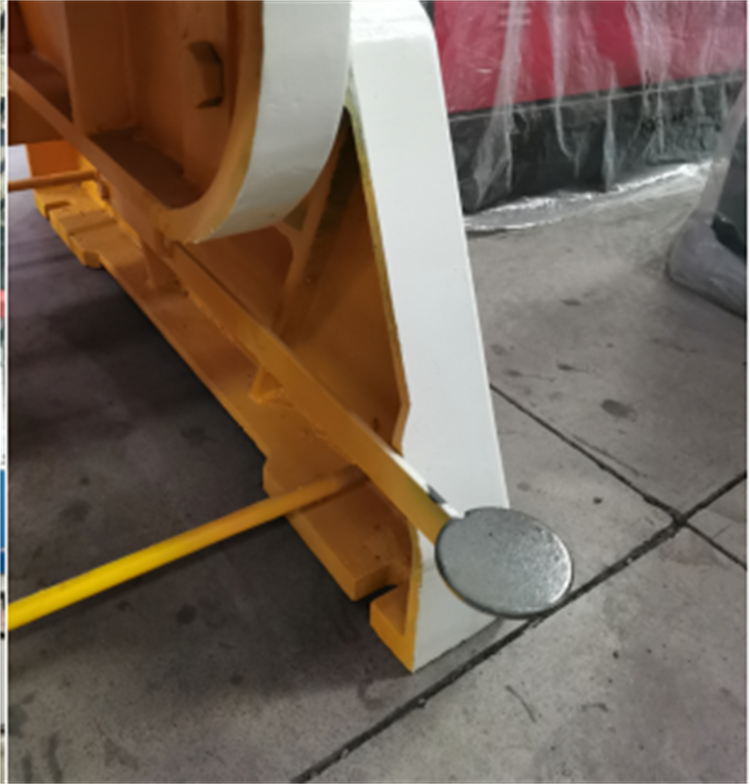

Controlling the electromagnet and machine by foot switch, which is easy operated.

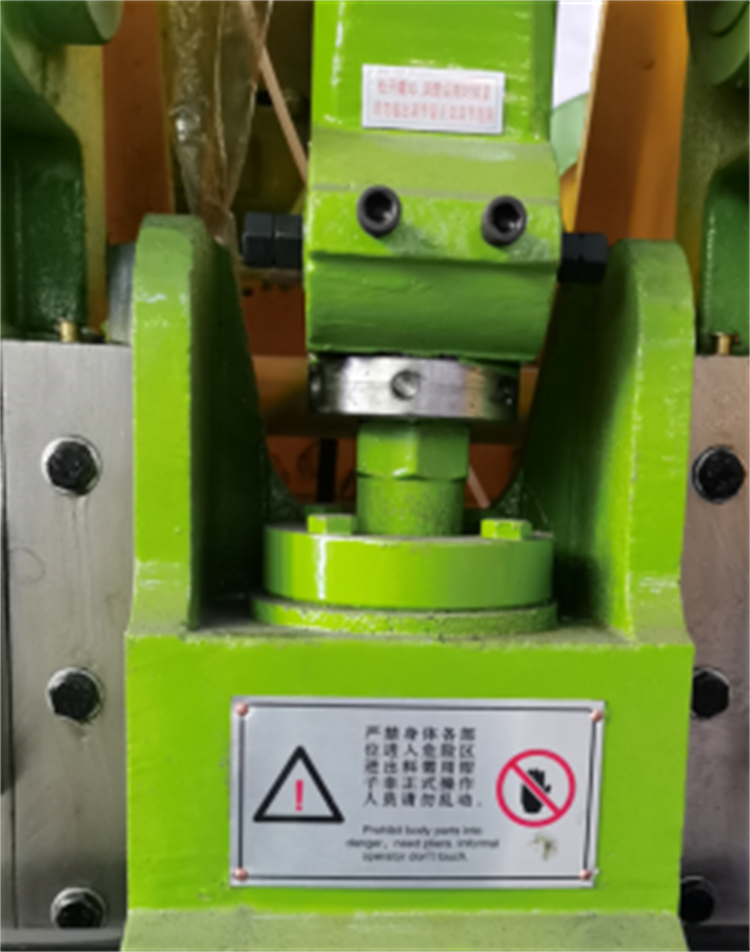

Manually adjusts the die height of mechanical punch, scale display
Use motor to ensure the operation reliability.
Both-hands operation buttons to ensure the operators' safety.
1. Use the combine of dry friction clutch and brake pneumatic, rigid interlocking, reliable piece of friction material semimetallic friction material SMFM88 less pollution, long life. With the transfer torque, rotational inertia is small, smooth transmission, flexible operation,convenient of installation and maintenance
2. Die height adjustment of slider with manual mode, the scale display. Extended by four triangular rail, easy adjustment.
3. Use double safety valve to ensure the accurate implementation of the clutch instruction.
4. Electrical control is installed PLC, 8 group cam controller, reliable action.
5. Electrical control adopts Omron PLC for centralized control, improved machine reliability
6. Proximity switch with 8 groups consisting of Schneider cam controller, reliable synchronization detection and monitoring.
7. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.
8. Can move the RAM up slowly, which allows the operator to control Mold adjustment conveniently.
1. Are you the manufacture? Can we visit your factory?
We are manufacturer and we are located in Anhui,China. And we have our own design team for products design.
And welcome you visit our factory and check our machine qualtiy on spot, any question will be solved on spot at first time.
2. What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products. Our main foreign market are Asia, North America, Europe, Africa.
3. What are the advantages of your machines?And how can i believe the quality of your product?
The main configuration is to import quality products, and Professional product quality inspection teamensure machine in
top-quality, precision and life. For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as qualified. Our machine would be sent out. So The quality of our product is stable and reliable.
4. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.
5. Can we be your agent?
Yes, we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical
problem or other after-sales problem, meanwhile ,you can get big discount and commission.
6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect. Buyer pays 30% by T/T to start this order, rest 70%paid before shipment.
7. Are you provide product metal parts and provide us technical guidance?
Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.
8. How long is your warranty?
13 months free warranty, life-long maintenance.
9. Do you accept customer Logo and customized ?
We accept kinds of customized ,including logo and machine .
