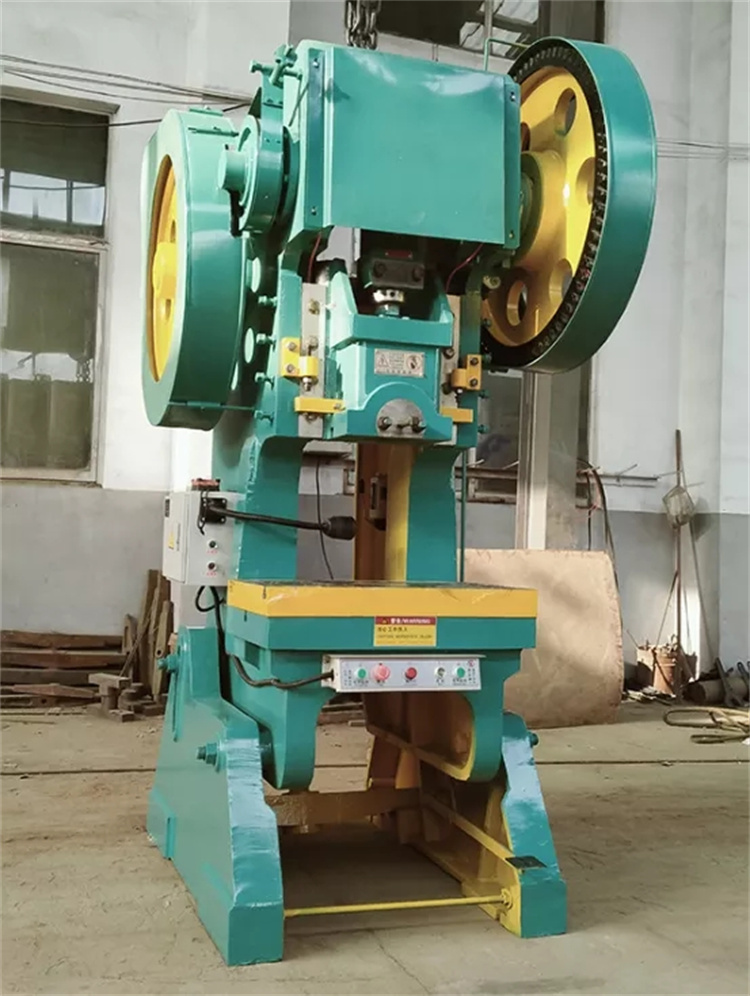

Stamping J23-25 Ton J23 40 Ton Round Corner Pneumatic Power Press Punching Machine

Application

Suitable for blanking, punching, forming, bending, shallow drawing and other cold stamping processes.

Widely used in electronic components, instruments, hardware tools, toys, vehicles, machinery, home appliances and other industrial fields.

1. Structure

*Foundry fuselage, stable performance.

*Type C fuselage, open tilting, good workspace, favorable for punching parts and scrap sliding.

*The rigid rotary clutch has simple structure.

* Belt brake, easy to adjust.

*Collapse type safety device to ensure that the whole machine is not damaged by overloading.

*The crankshaft is laid out horizontally, which is convenient for maintenance.

2.Characteristic

* Good versatility, simple structure, easy operation and maintenance.

* Economic press

Parameters

Details Images

Features

1. J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.
2. C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, , high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.
3. The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.
4. Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.
5. Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.
6. Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.
7. Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
8. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
