Product Description

J21 series open press is a sheet metal Universal presses for shearing, punching, blanking, bending and shallow drawing work. Usually used for ( communications, computers, household appliances, furniture, vehicles, (cars, motorcycles, bicycles) metal parts stamping and forming).

Technical parameter

NONameJ21-100T
1Nominal force(KN)1000
2Nominal force stroke(mm)8
3Slider stroke(mm)120
4Slider stroke times(time\min)45
5Maximum height for die loading290
6Adjustment range for die loading height80
7Distance between slider center line and the fuselage300
8Worktable size550*900
9Work table blanking hole sizeD200*200*400
10Slider bottom size290*350
11Shank hole sizeD60*Depth80
12Distance between columns(mm)380
13Bolster thickness(mm)100
14Tilting degree(degree)/
15Motor(kw)11

Main feature

1, With foundry structure for better vibration resistance.

2, Adopt horizontally placed crankshaft, external gear is open and easy for maintenance.

3, The good rigidity of Casting box structure slider

4, Built-in block collapsed overload protection device, the structure is simple, if slider after overload, fuse collapsed destroyed to protect the machine and mold from damage

5, Four elongated triangular rail, easy for adjustment.

6, Adopts hands and foot switch operation buttons design, it’s easy to activate continuous, single and adjustment practices.

7, Compatible with the corresponding punch automatic feeding system, which having a feeding error detection, pre-cut and pre-breaking device, low cost and high efficiency.

Details

Motor

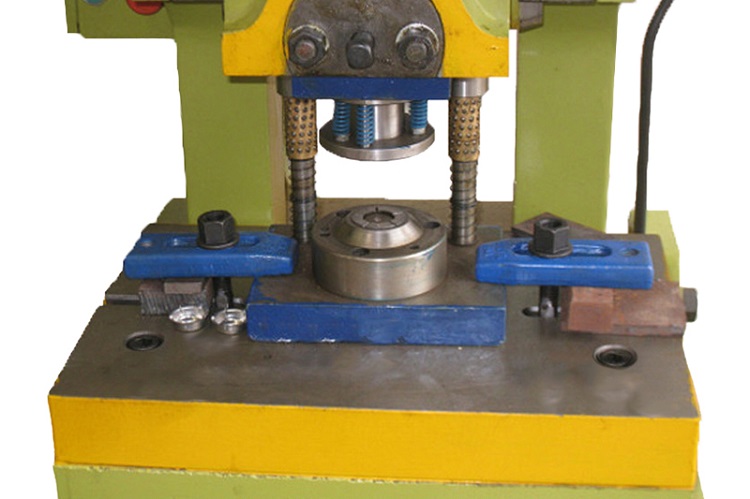

Manual Slide Adjustment
The press is equipped with a simle and reliable manual slide adjuster with 0.1mm increment indicator.

Easy and safty control
The control panel includes double hand buttons and emergency stop button and foot pedal control switch is optional.

Mechanical overload protected
A safty block is add inside the slide to protect the die if overload, it is easy to change the safty block by opening window in the side.



Application

Punch widely used in electronics, communications, computers, household appliances, furniture, transportation, (automobile, motorcycle, bicycle) hardware parts stamping and forming. Basically be aimed at plank. Through the mold, we can make blanking, punching, forming, drawing, dressing, fine punching, shaping, riveting and extrusion parts and so on, widely used in various fields. For example, we use switch sockets, cups, cupboards, dishes, computer cases,  there are a lot of accessories can be produced by punching through the mold.
