1. Excellent Path Quality: Smaller laser dot and high work efficiency, high quality.
2. High Cutting Speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable Running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low Maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy Operations: fiber line transmission, no adjustment of optical path.
|Max Cutting Range||3000*1500mm||2000*1500mm||According toDemands|
|Accessory Parts(L*W*H)||Chitler 1*1*1.2m Control Box 1*0.8*1.8mFiber Module 0.5*0.6*0.14m|
|Laser Medium||Single Core Junction Semiconductor Module|
|Max Cutting Speed||25m/min|
|Cooling Way||Water Cooling|
|Laser Power||500W(Option 200W/300W/400W/1000W/2000W)|
|Min Line Width||0.1mm|

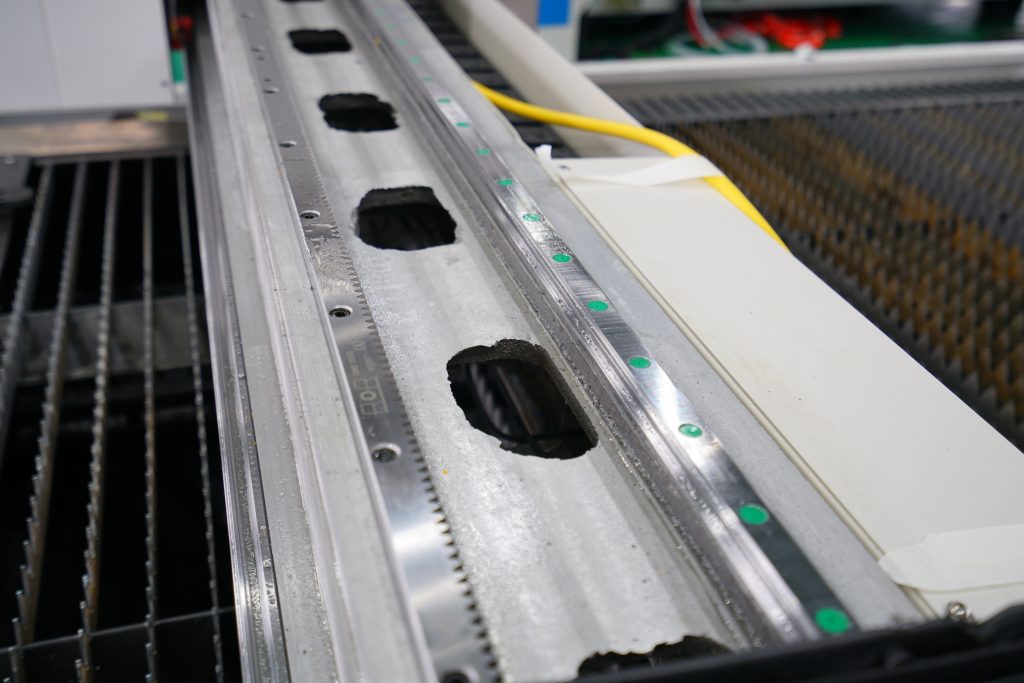

|Driving and Transmission Way||Imported Servo Motor and Linear Guide Rail|
|Continuous Working Time||24Hours|
|Related Weight||Machine Body 2732kg Trolley 116kgComputer Cabinet 56kg Servo Cabinet 75kg|
Transformer 77kg Chiller 93kg Fiber Module 50kg
Application: Laser Cutting
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: 0.2-12mm
Cutting Area: 3000*1500mm or 2400*1500mm
Cutting Speed: 25m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Certification: CE, ISO, FDA
After-sales Service Provided: Engineers available to service machinery overseas
Item: cnc laser cutting machine
Machine Size: 2.4*4.7*1.9m
Power Requirements: 380V/50Hz/16A
Continuous Working Time: 24Hours
Max. Cutting Speed: 25m/min
Cutting Depth: 0.2-6mm
Min. Line Width: 0.1mm
Driving and Transmission Way: Imported Servo Motor and Linear Guide Rail
Warranty: 3 years
MOQ: 1 set
