J23 High Precision power press Electric junction making metal box making press machine with high speed

Product Description

Application of JB23 Series Open Tilting Press

*Suitable for blanking, punching, forming, bending, shallow drawing and other cold stamping processes.

*Widely used in electronic components, instruments, hardware tools, toys, vehicles, machinery, home appliances and other industrial fields.

1. Structure

*Foundry fuselage, stable performance.

*Type C fuselage, open tilting, good workspace, favorable for punching parts and scrap sliding.

*The rigid rotary clutch has simple structure.

* Belt brake, easy to adjust.

*Collapse type safety device to ensure that the whole machine is not damaged by overloading.

*The crankshaft is laid out horizontally, which is convenient for maintenance.

2.Characteristic

* Good versatility, simple structure, easy operation and maintenance.

* Economic press

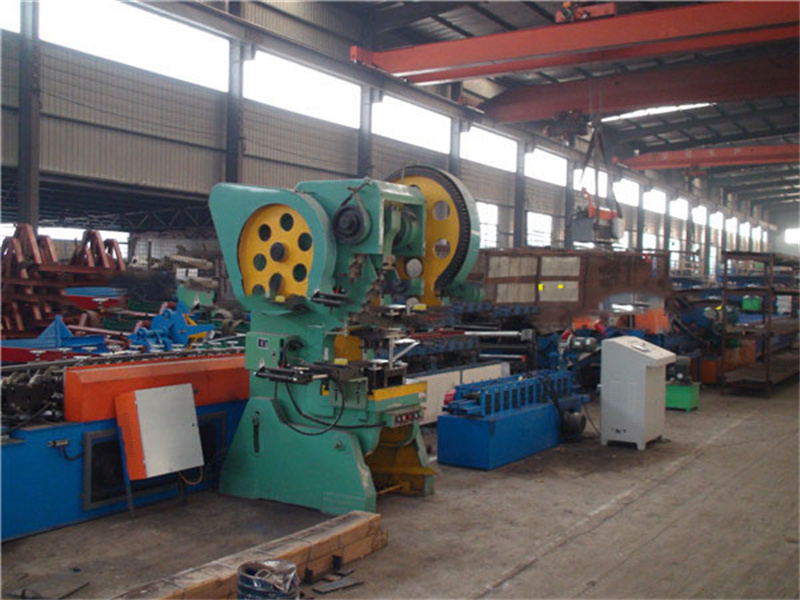

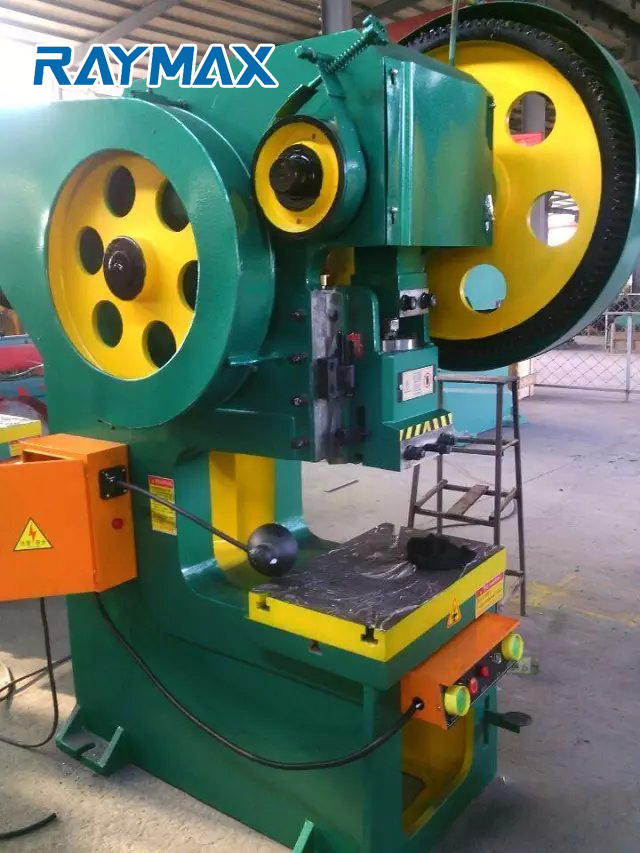

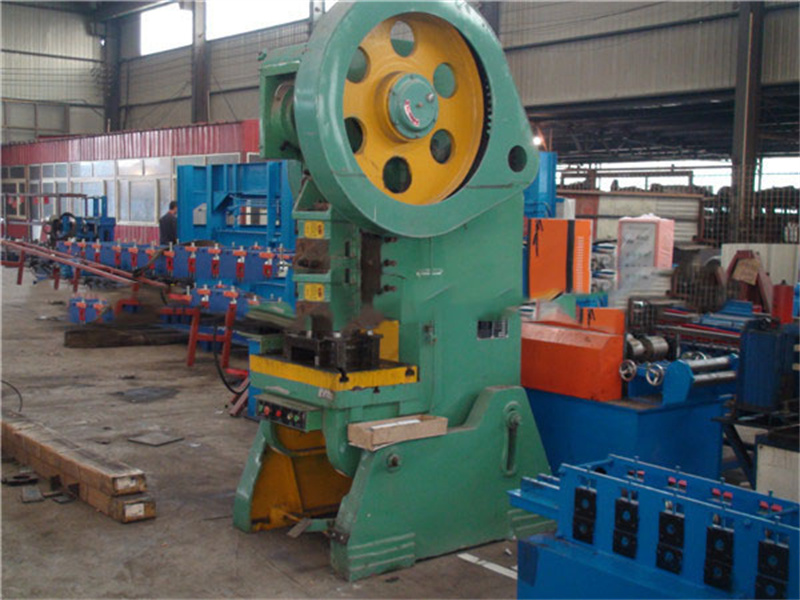

Product Display

Specifcation

		J23-6.3	J23-10	J23-16	J23-25
Capacity	kN	63	100	160	250
Nominal Force	mm	3	4	5	5
Slide Stroke	mm	35	60	55	80
SPM	min-1	170	145	125	60
Max. Die Height	mm	110	130	160	180
Die Height Adjustment	mm	30	35	45	70
Between Slide Center & Frame	mm	110	130	160	210
Bolster (FB×LR)	mm	200×310	240×360	300×450	400×600
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.)	mm	Φ60	Φ120×20 ×Φ100	Φ100	Φ120
Bolster Thickness	mm	40	50	40	70
Bolster Opening (Dia.×FB×LR)	mm	Φ140×110×160	Φ130×90×180	Φ210×160×240	Φ180×130 ×260
Slide Area (FB×LR)	mm	120×140	150×170	180×200	210×250
Shank Hole (Dia.×Dpth)	mm	Φ30×55	Φ30×55	Φ40×60	Φ40×70
Max. Inclined Angle	°	30°	25°	25°	25°
Between Columns	mm	150	180	220	260
Motor Power	kW	0.75	1.1	1.5	2.2
Outline Size (FB×LR×H)	mm	780×610 ×1505	915×700 ×1690	1150×900 ×1910	1325×990 ×2140
Net Weight	kg	360	600	1080	1900
