Q35Y series Using hydraulic transmission,can cut and punch all kinds of materials such as plates, square steel, round steel, angle steel, channel steel, joist steel.
Main standard properties components:
Professionally engineered design frame structures.
Steel welds with high precision strength and rigidity to eliminate vibrations.
Ironworker steel frame Q235 = American standard steel A306 GR55.
Five sets of punch and blades were installed on the machine.
Dual independent hydraulic cylinder.
Dual Footswitch controlled work separately
Easy Adjustable stroke control.
Indicator of both hydraulic cylinders.
1m Electric back gauge auto stop (press button,add cost ).
Moveable working light that can be placed at any desired position.
Hydraulic system with overload protection system.
Emergency safety stop switch .
Most important easy maintenance.
- Double cylinders hydraulic punch & shear machine
- Five independent stations for punch, shear, notcher, section cut

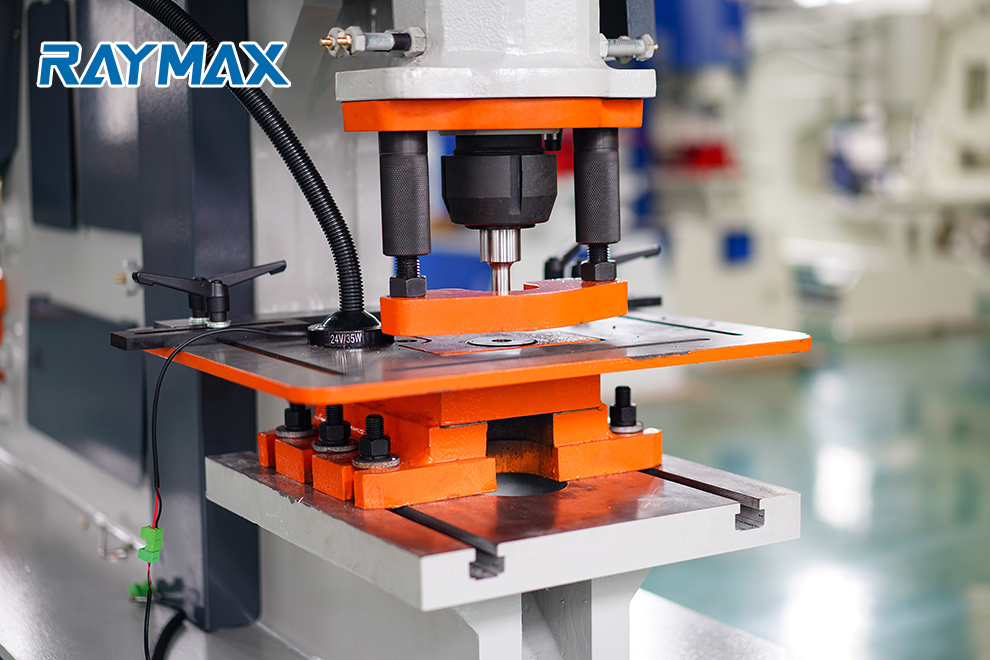

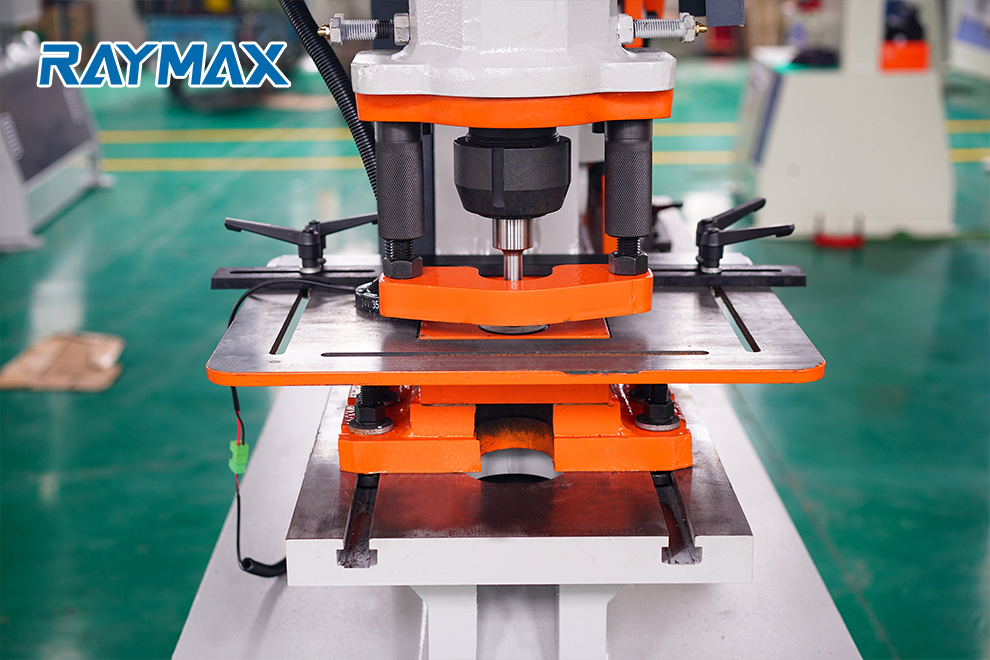

- Large punch table with multi-purpose bolster
- Removable table block for overhang channel / joist flange punching applications
- Universal die bolster, easy change punch holder fitted, punch adapters supplied

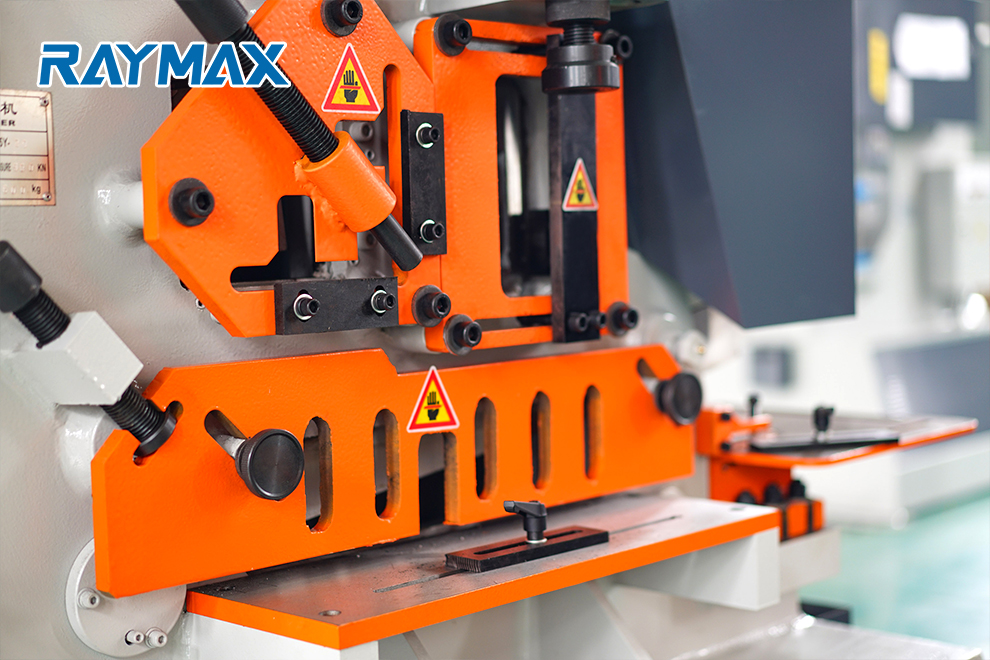

- Angle, round & square solid monoblock crop station
- Rear notching station, Low power inching and adjustable stroke at punch station
- Centralised pressure lubrication system
- Electric panel with overload protaction elements and ingetrated controls
